The ASTM D5276 standard is a protocol for testing the strength and protective ability of packaged products when exposed to a sudden shock resulting from a free-fall impact.

The procedure offers guidance on conducting free fall or drop tests to assess a container’s capacity to safeguard its contents during free fall incidents. These tests are performed in a controlled laboratory environment before the container is subjected to the distribution cycle. By following this procedure, companies can ensure the container’s ability to withstand potential impacts and protect the packaged items effectively.

ASTM D5276: meaning and use

The ASTM D5276 packaging test is mainly used for full boxes, cylindrical packaging, bags, and sacks. As well as for containers under 110 lb (50 kg), whose test method meets the requirements of ISO 2206: 1987 and 2248: 1985. These ISO standards may describe procedures that do not meet the requirements for this test method

In particular, this drop test standard is ideal for containers that are manually handled during the distribution cycle. It focuses on assessing the suitability of these containers, taking into account their size or weight. There are, therefore, more suitable standards for packages with automatic handlings, such as the ASTM D880, D6055, D6179, or D4003 testing methods.

ASTM D5726: Benefits of its application

Due to the size and characteristics of the samples to be tested, many logistics, e-commerce, or manufacturing companies, whose products are handled manually during some part of their distribution cycle, can benefit from the application of the ASTM D5276 standard.

Some of the advantages of complying with the standard are:

  • Optimization of packaging: through the ASTM D5276 standard, the adequacy of the packaging design to the distribution cycle and the risks of impacts from falls are evaluated. In particular, it can be used to carry out comparative studies between different packaging designs, but also to progressively evaluate when the packaging and the goods inside it fail.
  • Eliminate costs: the standard is aimed at achieving a packaging design that guarantees the safety of the goods. As a consequence, costs related to the decline of products during their distribution are eliminated. In addition, ASTM certification puts the company in an advantageous position when negotiating transport costs, as it provides a guarantee of the product’s ability to withstand distribution conditions.
  • Improved brand image: the company demonstrates that it works to guarantee the safety of its product, designing a product+packaging system that reaches the end customer in perfect condition.

Requirements to meet ASTM D5276

The ASTM D5276 test method requires that several requirements are met, as the text does not provide any guidance on fall height, fall orientation, or the need for repeated falls.

In particular, a document specifying the following parameters will be required:

  • How many samples are to be used
  • How the samples are prepared
  • Height of fall
  • Falling orientation
  • Number of times the falls are repeated
  • Specific environmental conditions, such as temperature or humidity

Therefore, this test method should be combined with other technical documents, such as some ISTA test procedures. These technical documents will dictate test parameters, such as height and orientation of the fall, or whether all tests should be performed on a single sample or multiple samples. For example, the ISTA 3A standard was created to provide a standard set of tests that test the individual performance of a package when sent through parcel services or by post.

As well as the ISTA 1A procedure, designed to challenge the strength and robustness of the product assembly plus packaging, in a controlled environment as with the ASTM D 5276 standard.

Therefore, the ASTM D5276 test method should be combined with other test methods where they are included: ISTA 1A, ISTA 2A, ASTM D4169, and TP 14850.

Specific requirements in the standard for free-fall test equipment.

The basic requirements state that the fall tester must:

  • Allow the container to be fixed to the apparatus in such a way that the position results in a correct orientation within 2 degrees after impact
  • Allow precise control of the fall from the specified height
  • Use lifting devices that do not damage the test sample.
  • Provide a release mechanism that does not exert any vertical, rotational, or lateral force on the test vessel.
  • Provide a spring or other mechanism, only if sheets are used, that does not interfere with free fall

In addition, the impact surface of the free-fall machine must meet the following requirements:

  • The impact surface must be horizontal and flat.
  • It must be large enough so that it cannot move and the sample at the end of the machine falls completely onto the impact surface.
  • It must be sufficiently rigid so that it does not deform due to the impact of the sample on the surface during the test.
  • It must be made of concrete, stone, or steel.
  • The impact surface must weigh at least 50 times that of the heaviest container to be tested
  • The depth and width must not be less than half the length

Equipment to perform the ASTM D5276 test

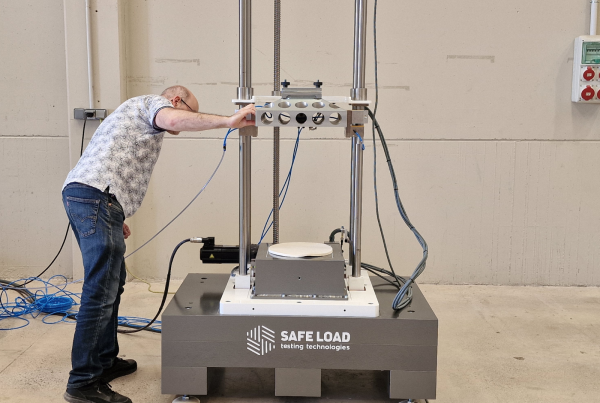

Safe Load Testing Technologies provides a drop tester machine designed to meet the testing standards of ISTA, ASTM, and ISO, including the ASTM D5276 protocol. This machinery is specifically tailored to ensure compliance with these industry-recognized standards, guaranteeing accurate and reliable drop testing for packaging evaluation purposes. By using the drop tester machine from Safe Load Testing Technologies, companies can confidently assess the performance and durability of their packaging by the established testing guidelines.

This drop tester allows the simulation of falls and rotational impacts that can affect packages and products during their handling and distribution.

Some of its features include:

  • Several models adapted to the weight of the package, being able to test samples up to 1,200 kg or 60 lbs.
  • Simulation of falls up to 2 meters high or 60 inches
  • Intuitive control through a touchscreen
  • Simulation of flat, edge and corner falls

In addition, the following products can be purchased along with the equipment:

  • Kit to reduce the minimum height

innVision ST: high-speed camera and software that measures the unit load deformation of the unit and generates a report.

Do you want to comply with the ASTM D5276 standard? In Safe Load Testing Technologies we provide simulation equipment in line with the main standards relating to simulation tests in transport: ISTA, ASTM, ISO, EN, and EUMOS, with the guarantee of maximum reliability and accuracy in simulating reality in each test. Contact us and let’s talk about how we can help you.
